Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine

Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine

Rhinestone CNC Plate Drilling Machine

Auto CNC Plate Drilling Machine

Woodworking CNC Router 600X900

Place of Origin:

China

Brand Name:

LEDIO

Certification:

CE FDA

Model Number:

6090/1260/1313/1325/2030

Chat Now
Request A Quote
Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine
Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine
Product Details
Name:
CNC Router Machine
Range Of Spindle Speed(r.p.m):
1 - 24000 Rpm
Positioning Accuracy (mm):
0.05
Number Of Axes:
3
Machine Type:
CNC Router
No. Of Spindles:
Single
Travel (x Axis)(mm):
600
Travel (y Axis)(mm):
900
Repeatability (x/y/z) (mm):
0.05
Cnc Or Not:
CNC
Voltage:
110V 220V
Dimension(l*w*h):
1300*1100*`1450mm
Weight (kg):
320
Control System Brand:
NC Studio, DSP, RichAuto
Warranty:
1 Year
Key Selling Points:
High Accuracy
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
Bearing, Motor, Gear, Engine, Gearbox
Working Area:
600*900mm
Spindle Rotating Speed:
6000-24000rpm/min
Max Feed-in Height:
110mm
Control System:
NC Studio/DSP
Spindle:
Water Cooled 1.5kw / 2.2kw /3kw
Software:
Ucancam / ArtCam/TYPE3
Guide Rail:
Taiwan HIWIN Square Rail
Application:
Non-metal Sheet, PVC, Wood Carving And Cutting
Material:
Iron Steel Cast Alloy
Motor:
Stepper
Rail:
Square
Voltage:
220V 50-60 Hz Or Accordingly
Highlight:

Rhinestone CNC Plate Drilling Machine

,

Auto CNC Plate Drilling Machine

,

Woodworking CNC Router 600X900

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
USD 1750-4000
Packaging Details
Wooden Package
Delivery Time
5-10 working days
Payment Terms
T/T Western Union
Supply Ability
150pcs
RELATED PRODUCTS
Good price Wood Cutting CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Making online video

Wood Cutting CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Making

Chat Now
Good price Auto Drilling CNC Router Machine 110V 220V For Template Making / Hotfix Rhinestone online video

Auto Drilling CNC Router Machine 110V 220V For Template Making / Hotfix Rhinestone

Chat Now
Good price 1.5KW 2.2KW 3KW Mini CNC Engraving Machine For Hotfix Rhinestone PVC Template Making online video

1.5KW 2.2KW 3KW Mini CNC Engraving Machine For Hotfix Rhinestone PVC Template Making

Chat Now
Good price CNC Sheet Drilling Machine 600×900 Rhinestone PVC Plate Carving Machine online video

CNC Sheet Drilling Machine 600×900 Rhinestone PVC Plate Carving Machine

Chat Now
CONTACT US
86-20-86211362
ledio01@ld-cnc.com
Chat Now
Product Description
Product Description

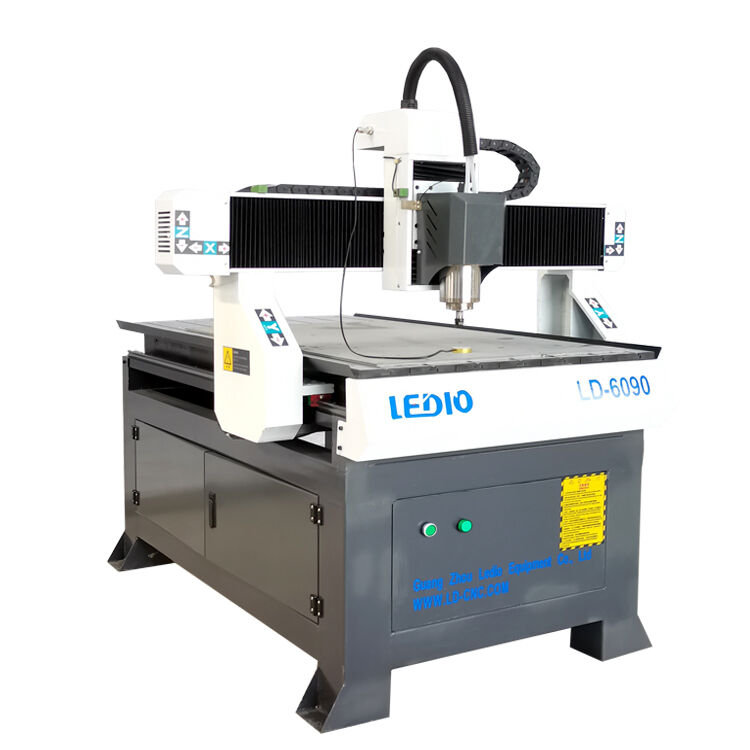

Rhinestone Plate Auto CNC Drilling Machine
Our 6090 and 1313 small CNC routers are compact and high-performance engraving machines designed for small workshops, advertising companies, craft manufacturers and DIY users. With working areas of 600×900mm and 1300×1300mm respectively, they provide enough processing space while saving installation space.

Applicable Materials: Plexiglas/ glass/ acrylic/ double-color board/ ABS board/ PVC board/ circuit board/ inscribed wooden slip/ wooden board etc.

Applicable Industries: Advertisement signs/ marks/ brands/ Blister light box mould/ casting mould/ circuit board manufacture/ electroplating drill/ art craft works/ crystal works/ wood products/ decoration/

Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine 0


Application
Applicable Industries: Advertisement signs / marks / brands / Blister light box mould / casting mould / circuit board manufacture / electroplating drill / art craft works/ crystal works/ wood products/ decoration/ upholster and other related industries.
Specification
Condition
New
Range of Spindle Speed(r.p.m)
1rpm - 24000rpm
Positioning Accuracy (mm)
0.05mm
Number of Axes
3
No. of Spindles
Single
Working Table Size(mm)
600×900
Machine Type
CNC Router
Travel (X Axis)(mm)
600mm
Travel (Y Axis)(mm)
900mm
Repeatability (X/Y/Z) (mm)
0.05mm
 Max running speed
 5m/min
 Max feed-in height
110mm
 Resolution ratio
 0.025mm
Command language
HPGL,G Code*.u00*.mmg*.plt
 Software operating environment
Windows 98/2000/XP
 Work mode
 Stepping (rack transmission)
Spindle Motor Power(kW)
1.5KW/2.2KW
CNC or Not
CNC
Voltage
220V/380V 50-60hz
Dimension(L*W*H)
1300*1100*1450mm
Power (kW)
3
Weight (KG)
320
Warranty
1 Year
Key Selling Points
High-accuracy
Applicable Industries
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing, Motor, Gear, Engine, Gearbox
Working area
600*900mm
spindle motor
1.5kw/2.2kw
cooling type
water-cooling
Spindle rotating speed
6000-24000rpm/min
Max feed-in height
110mm
Control system
NC Studio/DSP
Spindle
Water Cooling Spindle
Software
Ucancam / ArtCam/TYPE3
Guide rail
Taiwan HIWIN Square Rail
Sample show
Woodworking CNC Router 600X900 Rhinestone Plate Auto CNC Plate Drilling Machine 1
