Name: Heat Transfer Laser Vinyl Cutter Machine Water Cooling Fabric Cutting Plotter Machine
Brand: Guangzhou Ledio Equipment Co., Ltd.
SKU: 1060 1880 1260 950
Availability: InStock

Home > Products > Vinyl Laser Cutting Machine >

Heat Transfer Laser Vinyl Cutter Machine Water Cooling Fabric Cutting Plotter Machine

Heat Transfer Laser Vinyl Cutter Machine

Laser Vinyl Cutter Machine Water Cooling

Fabric Cutting Plotter Machine

Place of Origin:

China

Brand Name:

LEDIO

Certification:

CE FDA

Model Number:

1060 1880 1260 950

Chat Now

Request A Quote

Product Details

Name:

Laser Vinyl Cutter Machine

Applicable Material:

Plastic

Laser Source Brand:

SPT

Cnc Or Not:

Yes

Condition:

New

Laser Type:

CO2

Control Software:

NEW A3S Laser Controller

Cooling Mode:

Water Cooling

Dimension(l*w*h):

1.2*0.6*1m

Graphic Format Supported:

BMP, DXF, PLT

Guiderail Brand:

HIWIN

Key Selling Points:

High Productivity

Laser Head Brand:

Ledio

Warranty:

1 Year

Weight:

200

Type:

980LASER PRO S+

Cutting Way:

Laser Cut

Support File Formats:

PDF/SVG/AI/PLT/DXF/DST/DSB/BMP/JPG/PNG/ GIF/ISO/CUT/DAT

Laser Tube:

SPT 50W

Laser Power Supply Brand:

Laser Powr Supply

Support Interface Types:

Network Interface/PC/U Drive/wifi

Maximum Discharge Width:

980mm

Maximum Cutting Width:

800mm

Repetitive Cutting Accuracy:

±0.2

Motor Drive Mode:

Stepping Motor

Application:

Textile, DIY Cloth Design, Rhinstone Shaking, Logo Design, Plate Drilling, Rhinstone Setting. TPU PU Cutting

Voltage:

110V/220V

Color:

White Blue Black

Highlight:

Heat Transfer Laser Vinyl Cutter Machine

Laser Vinyl Cutter Machine Water Cooling

Fabric Cutting Plotter Machine

Payment & Shipping Terms

Minimum Order Quantity

1PC

Packaging Details

Wooden package

Delivery Time

5-10 working days

Payment Terms

LC T/T Western union

Supply Ability

500 pcs

Vinyl Sticker Film Laser Cutting Plotter Machine Easy Operate For Fabric Field

Chat Now

video

110V 220V High Precision Laser Cutting Machine For PU TPU PVC Vinyl Plotter Transfer

Chat Now

video

Heat Transfer Vinyl Plotter Cutter Machine Water Cooling Vinyl Sticker Laser Cutting Machine

Chat Now

video

Heat Transfer Laser Vinyl Cutting Machine 110V 220V For Fabric Vinyl Sticker

Chat Now

86-20-86211362

ledio01@ld-cnc.com

Chat Now

Product Description

Ledio Heat Transfer Laser Vinyl Cutter Machine Fabric Cutting Plotter

We have machine in stock in Guangzhou ,welcome to visit us !

Wide Compatibility & User-Friendly Design

This machine is perfectly compatible with various film materials, including heat transfer film, PU/PVC film, vinyl, reflective film, sticker and TPU film. It boasts a user-friendly control panel and intuitive operating software, requiring no professional skills for quick mastery, with low failure rate and easy maintenance. The robust all-steel frame ensures stable operation, low noise and long service life, supporting long-hour continuous industrial work.

With its dual core strengths of high precision and high speed, this laser film engraving machine integrates efficiency and quality perfectly, providing a reliable, cost-effective processing solution for businesses pursuing high-standard production and large-volume orders.

PRODUCT SPECIFICATIONS

Type	980LASER PRO+
Laser type	SPT glass co2 laser tube
Tube power	50w
Laser power supply brand	laser power
Maximum discharge width	980mm
Maximum cutting width	800mm
Repetitive cutting accuracy	±0.2
Motor drive mode	stepping motor
Cooling water chiller	CW3200
Cutting gas assistance	20w

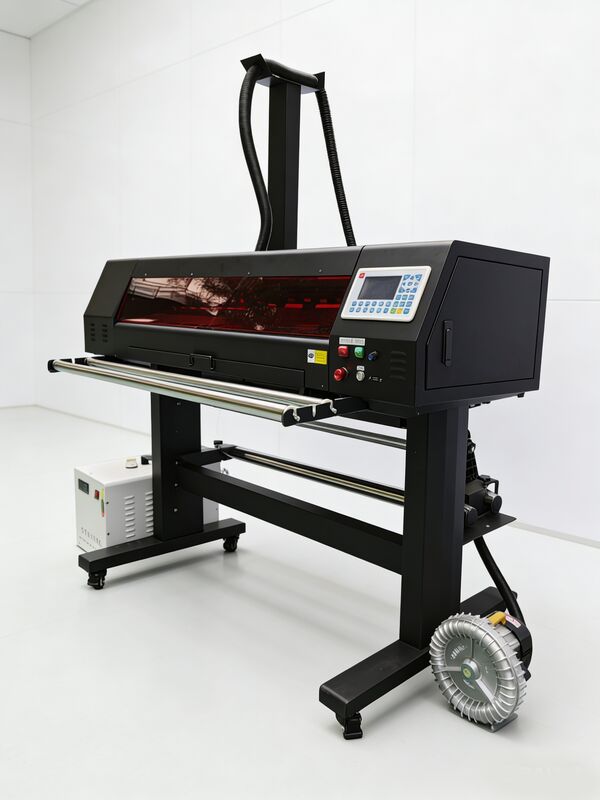

Heat Transfer Laser Vinyl Cutter Machine Water Cooling Fabric Cutting Plotter Machine 1

Control System

Adopts NEW A3S laser controller Supports PC connection, USB disk reading, network port connection, and WIFI connection

Material feeding system

Uses fully segmented steel barbed shaft
The steel barbed shaft has better friction, which is conducive to the accuracy of material forward and backward movement, making
the material run smoothly. With the integrated glue injection pressure wheel, it prevents the material from running off.

Feeding system

Passive feeding Passive feeding uses a fixed left and right clamping shaft. The clamping shaft can adjust the material feeding
force on both sides. The material can be more stable when feeding. The left and right fixers prevent the material from being
offset to the left and right, and the cut material will not deviate

Waste collector

Waste during cutting can easily cause the material height to increase Waste will fall into the waste collector during material
movement, ensuring stable cutting and easy waste collection to maintain hygiene.

Laser tube type

Adopt customized professional CO2 laser tube 50W customized professional laser ube, with small spot, stable cutting, working life

of co2 is about 4000 hours

Waste smoke extraction device

A high-power vacuum turbine blower absorbs the smoke generated by cutting through the pipe.

Machine advantage

1.Laser engraving machine cutting range and advantages: stickers, instant notes, kraft paper, PVC film, PP material, PU material,TPU material, thin acrylic, cardboard, thin wood, silicone material, clothing lettering film, most materials, cloth and other non-metallic soft materials within 2mm can be cut and engraved.

2.Laser cutting plotter is a laser tube or radio frequency laser that emits laser light through three reflections and then focuses to generate cutting force to burn and cut the material. Laser cutting is non-contact cutting, and no compensation is required when cutting directly or at sharp corners. The cutting is very smooth. The cutting edge of laser cutting is easier to separate from the waste and easier to discharge waste. Laser cutting can also achieve multiple color line segments with different power and speed settings, so that half-cutting and full-cutting can be cut at the same time, and the unwanted internal waste can be directly cut off, saving the time of manual removal (also known as laser waste removal machine). Laser cutting plotter can also remove the surface to achieve engraving effect. Laser cutting is deeper than knife cutting, and the cutting thickness can reach 1.5-2.0mm

3.Laser cutting plotter the width of laser cutting plotter can reach 800mm, and the length is no limited, it is no need you to put material by hand. In terms of cutting effect, since the laser head of the laser cutting plotter moves for cutting, the cutting force is uniform and the cutting surface is vertical.

Welcome to coopertation with us
