Name: 600x900 CNC Router Machine 1.5kw Water Cooling For Auto Drilling
Brand: Guangzhou Ledio Equipment Co., Ltd.
SKU: 6090/1260/1313/1325/2030
Price: 2,875.00 USD
Availability: InStock

Home > Products > CNC Router Machine >

600x900 CNC Router Machine 1.5kw Water Cooling For Auto Drilling

600x900 CNC Router Machine

CNC Router Machine 1.5kw

CNC Router Equipment Water Cooling

Place of Origin:

China

Brand Name:

LEDIO

Certification:

CE FDA

Model Number:

6090/1260/1313/1325/2030

Document:

6090cnc .pdf

Chat Now

Request A Quote

Product Details

Name:

CNC Router Machine

Application:

Non-metal Sheet, PVC, Wood Carving And Cutting

Voltage:

110V/220V

Color:

White Blue Black

Material:

Iron Steel Cast Alloy

Spindle:

Water Cooled 1.5kw / 2.2kw /3kw

Motor:

Stepper

Rail:

Square

Voltage:

220V 50-60 Hz Or Accordingly

Highlight:

600x900 CNC Router Machine

CNC Router Machine 1.5kw

CNC Router Equipment Water Cooling

Payment & Shipping Terms

Minimum Order Quantity

1PC

Price

USD 1750-4000

Packaging Details

Wooden Package

Delivery Time

5-10 working days

Payment Terms

T/T Western Union

Supply Ability

150pcs

Wood Cutting CNC Router Machine For Two Color Sheet Hotfix Rhinestone Template Making

Chat Now

video

Auto Drilling CNC Router Machine 110V 220V For Template Making / Hotfix Rhinestone

Chat Now

video

1.5KW 2.2KW 3KW Mini CNC Engraving Machine For Hotfix Rhinestone PVC Template Making

Chat Now

video

CNC Sheet Drilling Machine 600×900 Rhinestone PVC Plate Carving Machine

Chat Now

86-20-86211362

ledio01@ld-cnc.com

Chat Now

Product Description

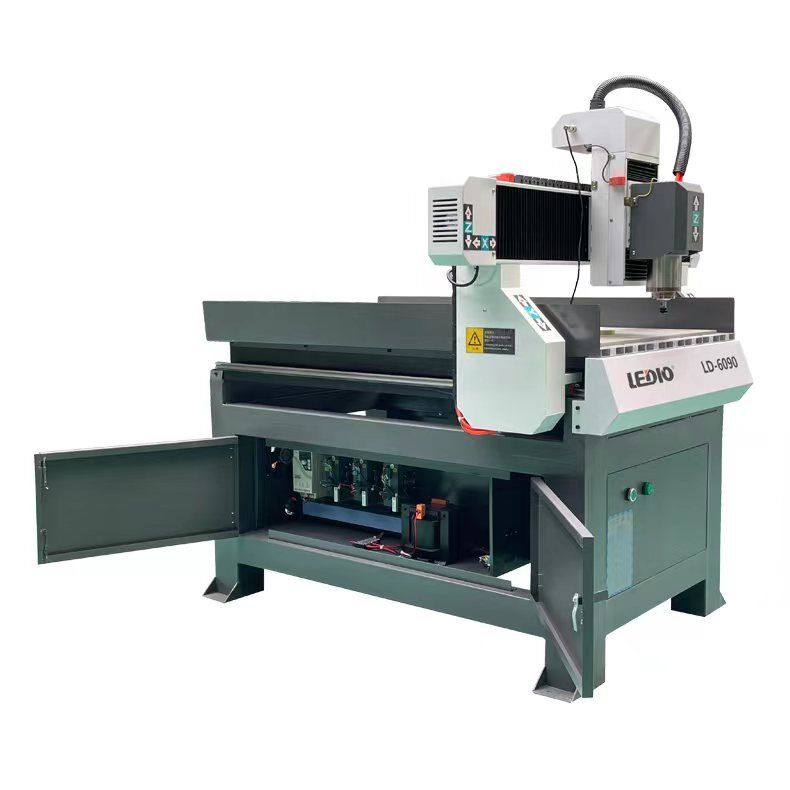

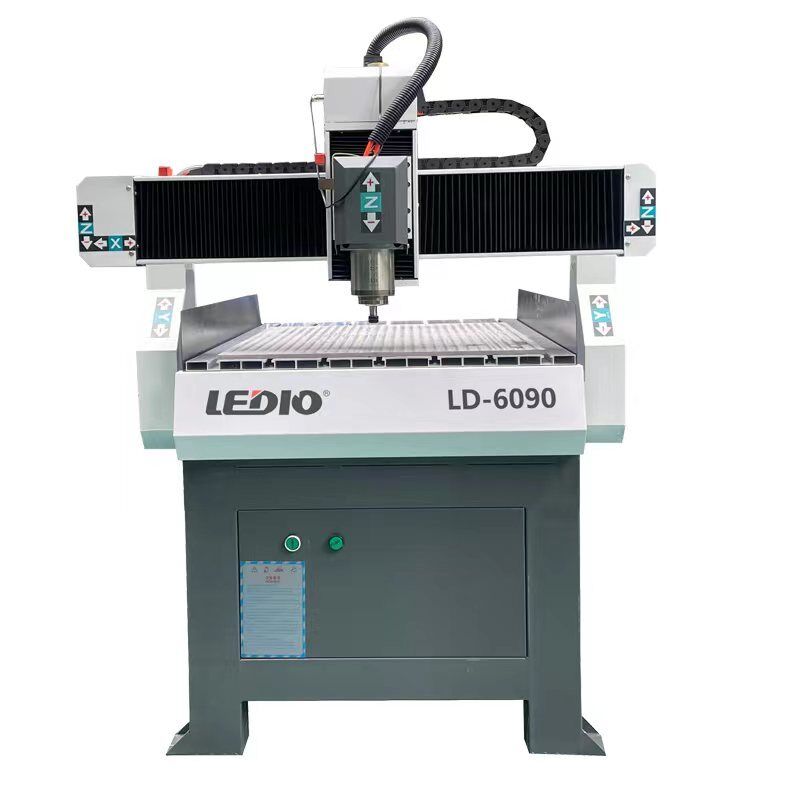

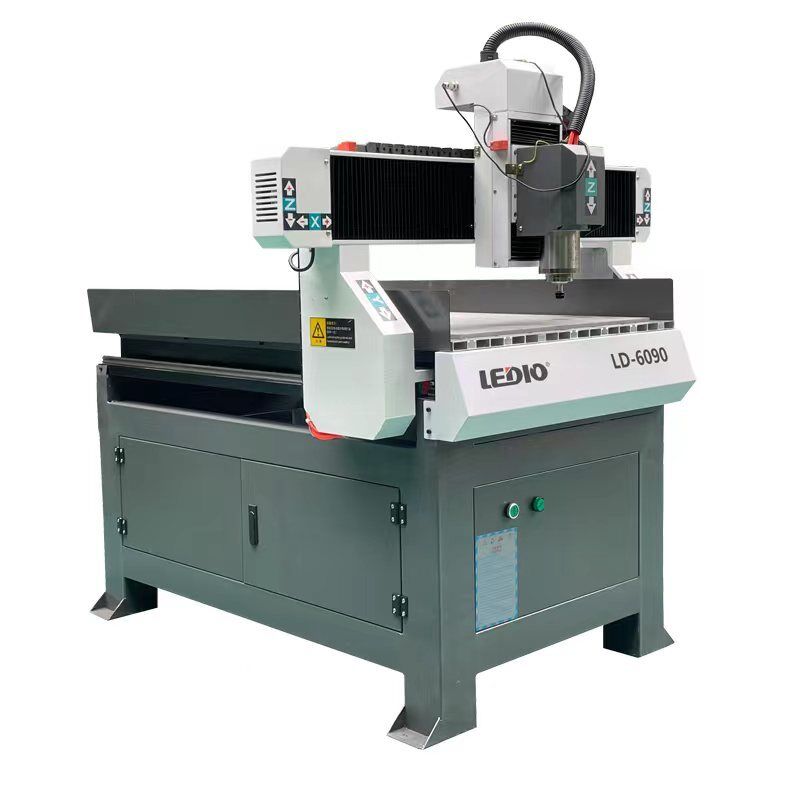

CNC Router Machine With 600x900mm Working Area 1.5kw Water Cooling Spindle And Hiwin Square Liner Guide For Auto Drilling

Model	6090
Working area	600900100mm
driver and motor	stepper 860 driver and 450A motor
Spindle motor	1.5kw water cooling spindle motor
Inverter	Best brand Frequency inverter
machine table	PVC table combined aluminum T-slot extrusion
X Y Z travelling Positioning Accuracy	0.08/300mm
X Y Z travelling repositioning Accuracy	±0.05mm
Frame	cast iron body structure
X Y structure	Taiwan Hiwin square liner guide and block
Z axis Structure	Ball screw
Max Rapid travel rate	10000mm/min
Max Working speed	8000mm/min
Working Voltage	AC220V 50HZ/60HZ
Control system	NC Studio control system
Limited stop	Extra-travel limit stop and hard limit stop
set collect	including 3.175mm,4mm,6mm
Machine accessories	including 14 tools
Operate system	Windows XP/window7,32bits
Package	Solidwood wooden package

CNC Drilling Carving Router Machine Sheet Auto Drilling Machine

Model	6090
Working area	600900100mm
Driver and motor	Stepper 860 driver and 450A motor
Spindle motor	1.5kw water cooling spindle motor
Inverter	Best brand Frequency inverter
Machine table	PVC table combined aluminum T-slot extrusion
X Y Z travelling Positioning Accuracy	0.08/300mm
X Y Z travelling repositioning Accuracy	±0.05mm
Frame	Cast iron body structure
X Y structure	Taiwan Hiwin square liner guide and block
Z axis Structure	Ball screw
Max Rapid travel rate	10000mm/min
Max Working speed	8000mm/min
Working Voltage	AC220V 50HZ/60HZ
Control system	NC Studio control system
Limited stop	Extra-travel limit stop and hard limit stop
Set collect	Including 3.175mm, 4mm, 6mm
Machine accessories	Including 14 tools
Operate system	Windows XP/window7, 32bits
Package	Solidwood wooden package

Applicable Materials & Industries

Applicable Materials

Plexiglas, glass, acrylic, double-color board, ABS board, PVC board, circuit board, inscribed wooden slip, wooden board, and more.

Applicable Industries

Advertisement signs, marks, brands, blister light box mould, casting mould, circuit board manufacture, electroplating drill, art craft works, crystal works, wood products, decoration, upholster and other related industries.

Configuration Details
