Place of Origin:
China
Brand Name:
LEDIO
Certification:
CE FDA
Model Number:
6090/1260/1313/1325/2030

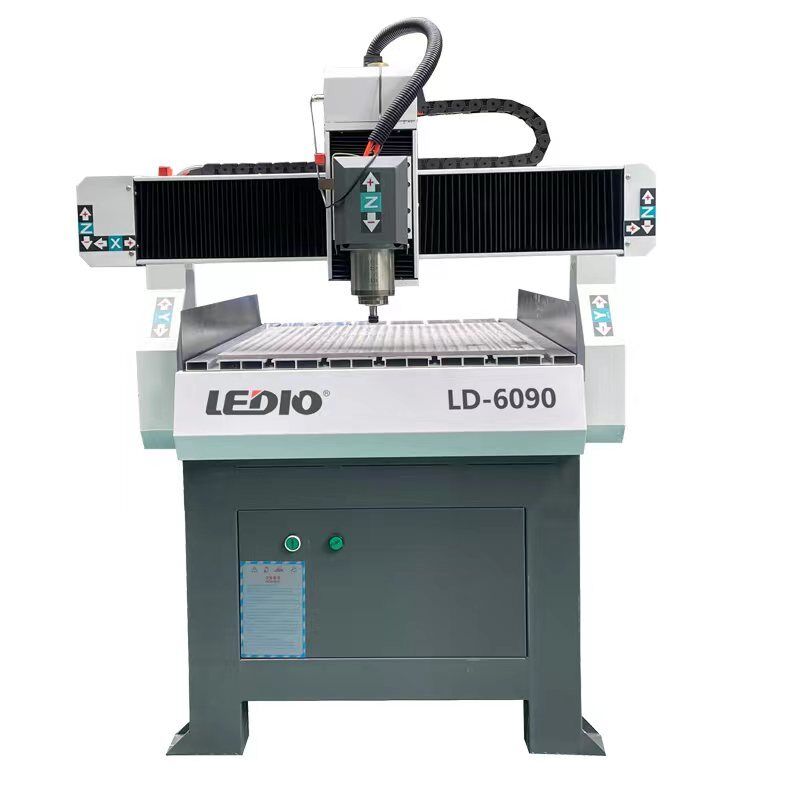

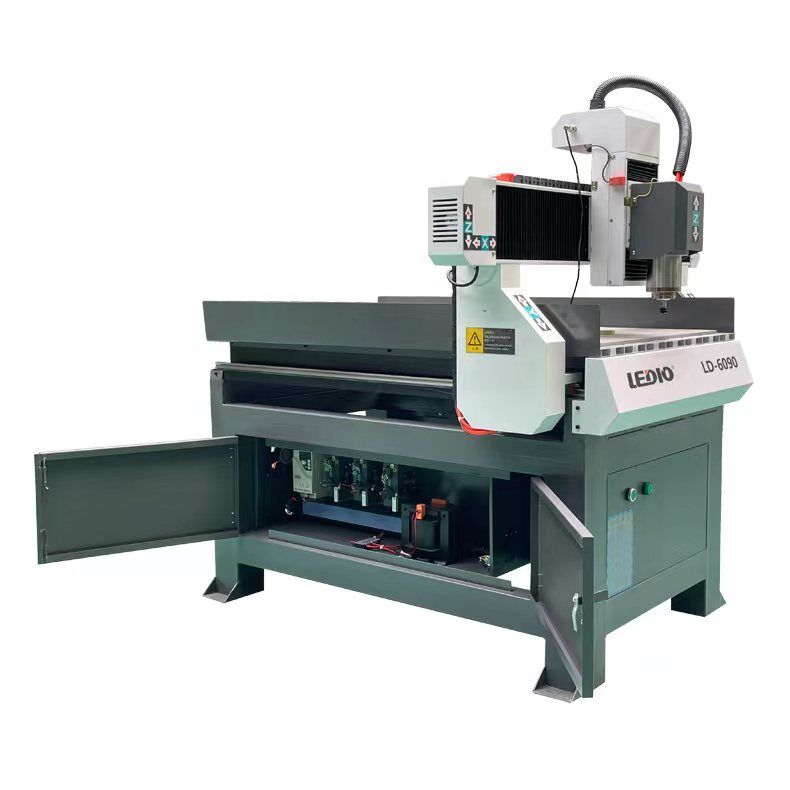

CNC Router Machine Engraving and cutting of apparel hotfix rhinestone
|
Model |
6090 |
|
Working area |
600*900*100mm |
|
driver and motor |
stepper 860 driver and 450A motor |
|
Spindle motor |
1.5kw water cooling spindle motor |
|
Inverter |
Best brand Frequency inverter |
|
machine table |
PVC table combined aluminum T-slot extrusion |
|
X Y Z travelling Positioning Accuracy |
0.08/300mm |
|
X Y Z travelling repositioning Accuracy |
±0.05mm |
|
Frame |
cast iron body structure |
|
X Y structure |
Taiwan Hiwin square liner guide and block |
|
Z axis Structure |
Ball screw |
|
Max Rapid travel rate |
10000mm/min |
|
Max Working speed |
8000mm/min |
|
Working Voltage |
AC220V 50HZ/60HZ |
|
Control system |
NC Studio control system |
|
Limited stop |
Extra-travel limit stop and hard limit stop |
|
set collect |
including 3.175mm,4mm,6mm |
|
Machine accessories |
including 14 tools |
|
Operate system |
Windows XP/window7,32bits |
|
Package |
Solidwood wooden package |
|
Model |
6090 |
|
Working area |
600*900*100mm |
|
driver and motor |
stepper 860 driver and 450A motor |
|
Spindle motor |
1.5kw water cooling spindle motor |
|
Inverter |
Best brand Frequency inverter |
|
machine table |
PVC table combined aluminum T-slot extrusion |
|
X Y Z travelling Positioning Accuracy |
0.08/300mm |
|
X Y Z travelling repositioning Accuracy |
±0.05mm |
|
Frame |
cast iron body structure |
|
X Y structure |
Taiwan Hiwin square liner guide and block |
|
Z axis Structure |
Ball screw |
|
Max Rapid travel rate |
10000mm/min |
|
Max Working speed |
8000mm/min |
|
Working Voltage |
AC220V 50HZ/60HZ |
|
Control system |
NC Studio control system |
|
Limited stop |
Extra-travel limit stop and hard limit stop |
|
set collect |
including 3.175mm,4mm,6mm |
|
Machine accessories |
including 14 tools |
|
Operate system |
Windows XP/window7,32bits |
|
Package |
Solidwood wooden package |
Applicable Materials & Industries
Applicable Materials: Plexiglas/ glass/ acrylic/ double-color board/ ABS board/ PVC board/ circuit board/ inscribed wooden slip/ wooden board etc.
Applicable Industries: Advertisement signs/ marks/ brands/ Blister light box mould/ casting mould/ circuit board manufacture/ electroplating drill/ art craft works/ crystal works/ wood products/ decoration/ upholster and other related industries.
Configuration picture show
|
|
|
|
|
China stepper motor and drivers |
1.5kw water cooling spindle motor |
Best brand Frequency inverter |
|
|
|
|
|
NC Studio control system |
Collect including 3.175mm,4mm,6mm |
Accessories 14 pieces tools |
Sample show
material
Double color board material
Acrylic material
Wood material
