Place of Origin:
China
Brand Name:
LEDIO
Certification:
CE FDA
Model Number:
6090/1260/1313/1325/2030

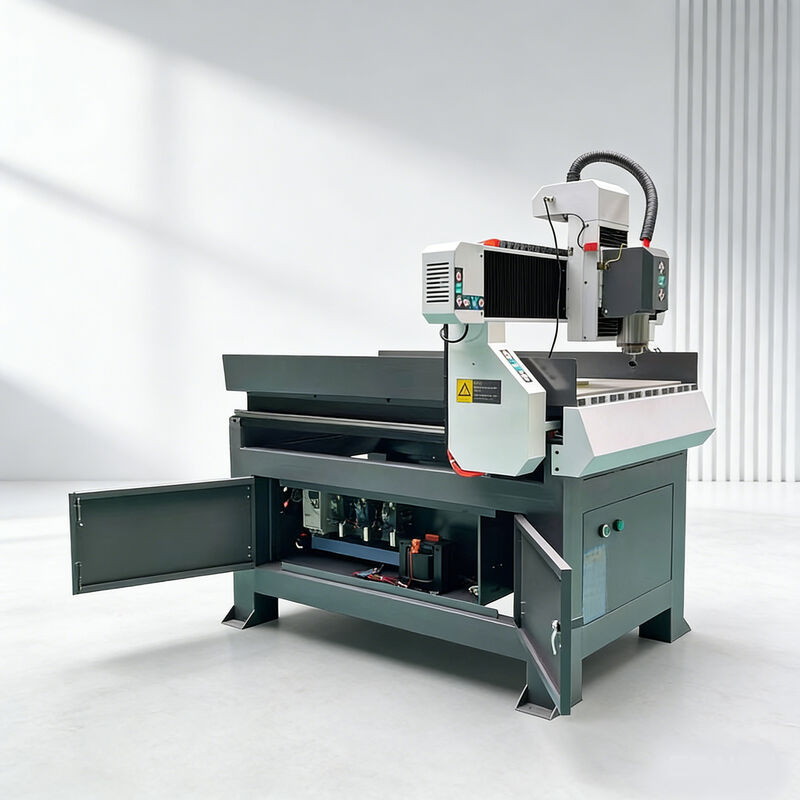

CNC Router Machine For Engraving And Cutting
Applicable Materials: Plexiglas/ glass/ acrylic/ double-color board/ ABS board/ PVC board/ circuit board/ inscribed wooden slip/ wooden board etc.
Applicable Industries: Advertisement signs/ marks/ brands/ Blister light box mould/ casting mould/ circuit board manufacture/ electroplating drill/ art craft works/ crystal works/ wood products/ decoration/ upholster and other related industries.
|
Model |
6090 |
|
Working area |
600*900*100mm |
|
driver and motor |
stepper 860 driver and 450A motor |
|
Spindle motor |
1.5kw water cooling spindle motor |
|
Inverter |
Best brand Frequency inverter |
|
machine table |
PVC table combined aluminum T-slot extrusion |
|
X Y Z travelling Positioning Accuracy |
0.08/300mm |
|
X Y Z travelling repositioning Accuracy |
±0.05mm |
|
Frame |
cast iron body structure |
|
X Y structure |
Taiwan Hiwin square liner guide and block |
|
Z axis Structure |
Ball screw |
|
Max Rapid travel rate |
10000mm/min |
|
Max Working speed |
8000mm/min |
|
Working Voltage |
AC220V 50HZ/60HZ |
|
Control system |
NC Studio control system |
|
Limited stop |
Extra-travel limit stop and hard limit stop |
|
set collect |
including 3.175mm,4mm,6mm |
|
Machine accessories |
including 14 tools |
|
Operate system |
Windows XP/window7,32bits |
|
Package |
Solidwood wooden package |
|
Condition
|
New
|
|
Range of Spindle Speed(r.p.m)
|
1rpm - 24000rpm
|
|
Positioning Accuracy (mm)
|
0.05mm
|
|
Number of Axes
|
3
|
|
No. of Spindles
|
Single
|
|
Working Table Size(mm)
|
600×900
|
|
Machine Type
|
CNC Router
|
|
Travel (X Axis)(mm)
|
600mm
|
|
Travel (Y Axis)(mm)
|
900mm
|
|
Repeatability (X/Y/Z) (mm)
|
0.05mm
|
|
Max running speed
|
5m/min
|
|
Max feed-in height
|
110mm
|
|
Resolution ratio
|
0.025mm
|
|
Command language
|
HPGL,G Code*.u00*.mmg*.plt
|
|
Software operating environment
|
Windows98/2000/XP
|
|
Work mode
|
Stepping (rack transmission)
|
|
Spindle Motor Power(kW)
|
1.5KW/2.2KW
|
|
CNC or Not
|
CNC
|
|
Voltage
|
220V/380V 50-60hz
|
|
Dimension(L*W*H)
|
1300*1100*1450mm
|
|
Power (kW)
|
3
|
|
Weight (KG)
|
320
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High-accuracy
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Motor, Gear, Engine, Gearbox
|
|
Working area
|
600*900mm
|
|
spindle motor
|
1.5kw/2.2kw
|
|
cooling type
|
water-cooling
|
|
Spindle rotating speed
|
6000-24000rpm/min
|
|
Max feed-in height
|
110mm
|
|
Control system
|
NC Studio/DSP
|
|
Spindle
|
Water Cooling Spindle
|
|
Software
|
Ucancam / ArtCam/TYPE3
|
|
Guide rail
|
Taiwan HIWIN Square Rail
|
