Place of Origin:
CHINA
Brand Name:
LEDIO
Certification:
CE FDA
Model Number:
980+

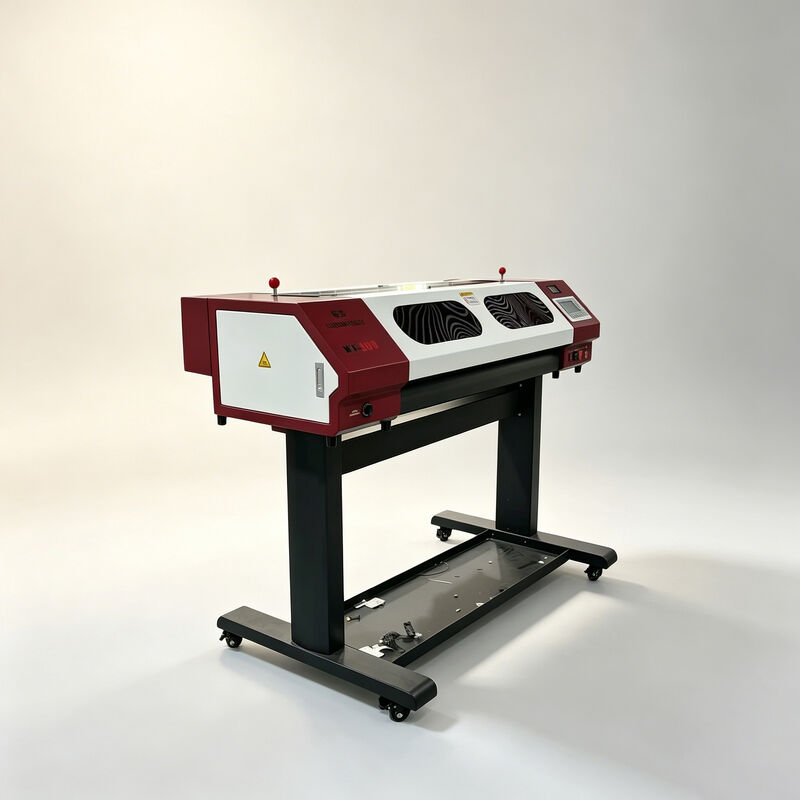

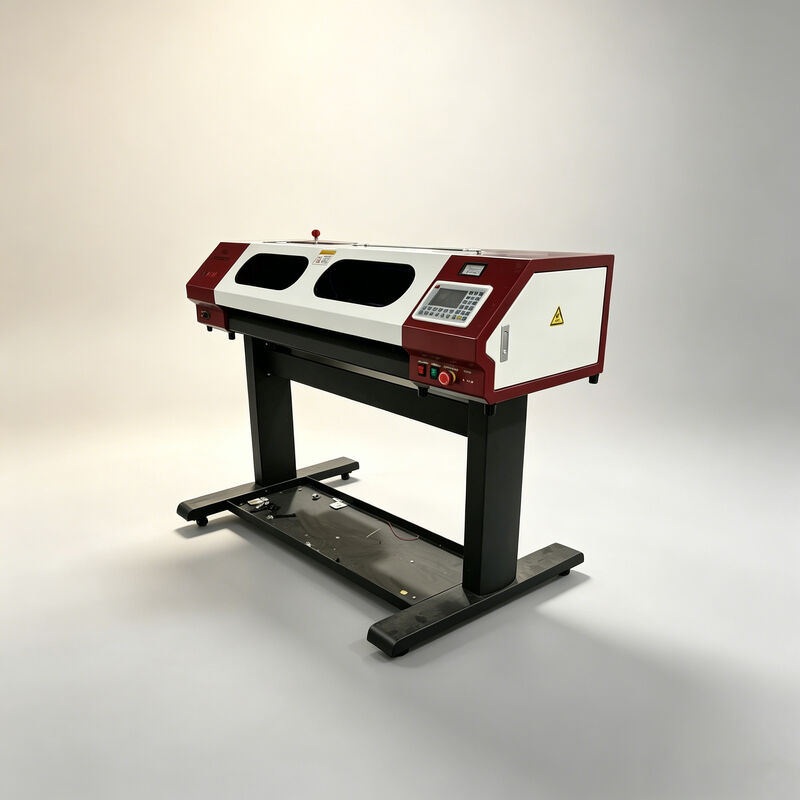

Garment PU TPU Laser Lettering Vinyl Film Carving Plotter
| function | laser cut | laser cut |
| CCD | Not included as standard, optional | Not included as standard |
| Support file formats | PDF/SVG/AI/PLT/DXF/DST/DSB/BMP/JPG/PNG/ GIF/ISO/CUT/DAT | PDF/SVG/AI/PLT/DXF/DST/DSB/BMP/JPG/PNG/ GIF/ISO/CUT/DAT |
| support software | autolaserlife/signmaster//cdr/ai | autolaserlife/signmaster//cdr/ai |
| Laser type | CO2 laser | RF laser |
| RF laser | SPT | YONGLI |
| Laser power | 45-50w Glass tube | 45w -50w Metal tube |
| Laser power supply brand | laserpwr | Taiwan Mingwei Power Supply |
| Support interface types | network interface/PC/U drive/wifi | network interface/PC/U drive/wifi |
| Maximum discharge width | 980mm | 980mm |
| Maximum cutting width | 800mm | 800mm |
| Repetitive cutting accuracy | ±0.2 | ±0.05 |
| Motor drive mode | stepping motor | servo motor |
| Material placer | YES | YES |
| Vacuum adsorption platform | YES | YES |
| Waste collection device | YES | YES |
| Smoking system | YES | YES |
| Infrared indication | YES | YES |
| Cooling water chiller | CW3200 | CW5200 industrial type better cooling protect |
| Cutting gas assistance | 20W | 20W |
| Smoke treatment system | Not included as standard, optional | Not included as standard, optional |
| Power | =300W | =300W |
| ambient temperature | 1-30 | 1-30 |
| Language Display List | Simplified Chinese/English/Traditional Chinese/Korean/Russian/Italian/Spanish/Portugu ese/Vietnamese | Simplified Chinese/English/Traditional Chinese/Korean/Russian/Italian/Spanish/Portugu ese/Vietnamese |
| Maximum cutting depth | =1mm | =1.5mm |
| Minimum cutting width | (Laser light = 0.15mm) Cutting width>material thickness | (Laser light = 0.15mm) details 980LASER PRO+ 980LASER PRO S+ Cutting width>material thickness |
| Comparative discourse | Moderate cutting speed, slightly coarse laser light, poor stability in cutting thick plate film | The cutting speed is fast, the laser light is very fine, the laser output is very uniform, and the cutting of thick plate film is stable. Long laser life = 10000 hours |
for garment use. cutting PU TPU , PVC. Soft material saving the time of manual removal (also known as laser waste removal machine). Laser cutting plotter can also remove the surface to achieve engraving effect. Laser cutting is deeper than knife cutting, and the cutting thickness can reach 1.5mm
