Place of Origin:
CHINA
Brand Name:
LEDIO
Certification:
CE FDA
Model Number:
980

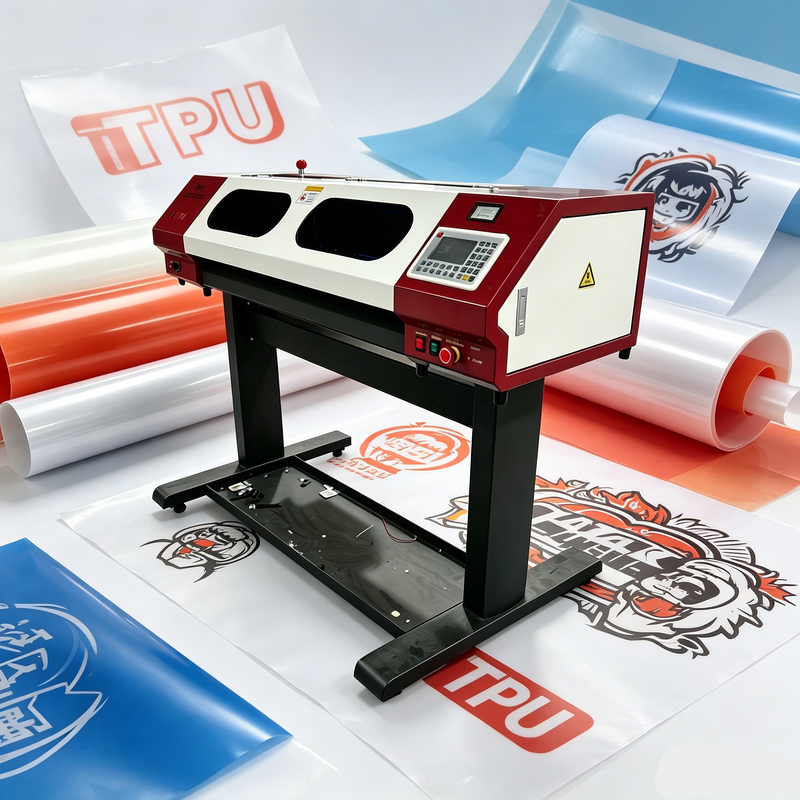

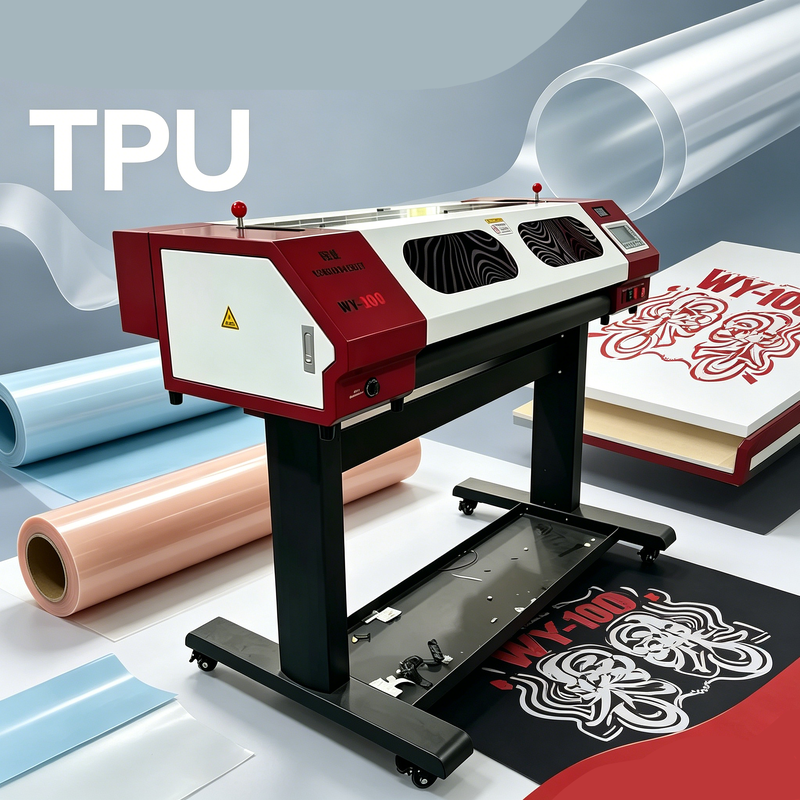

PU TPU Laser Lettering Vinyl Film Carving Plotter Machine
| details | LD -980 |
| function | laser cut |
| CCD | Not included as standard |
| Support file formats | PDF/SVG/AI/PLT/DXF/DST/DSB/BMP/JPG/PNG/ GIF/ISO/CUT/DAT |
| support software | autolaserlife/signmaster//cdr/ai |
| Laser type | RF laser |
| RF laser | YONGLI |
| Laser power | 45w RF Metal tube |
| Laser power supply brand | Taiwan Mingwei Power Supply |
| Support interface types | network interface/PC/U drive/wifi |
| Maximum discharge width | 980mm |
| Maximum cutting width | 800mm |
| Repetitive cutting accuracy | ±0.05 |
| Motor drive mode | servo motor |
| Material placer | YES |
| Vacuum adsorption platform | YES |
| Waste collection device | YES |
| Smoking system | YES |
| Infrared indication | YES |
| Cooling water chiller | industrial type better cooling protect |
| Cutting gas assistance | 20W |
| Smoke treatment system | Not included as standard, optional |
| Power | =300W |
| ambient temperature | 1-30 |
| Language Display List | Simplified Chinese/English/Traditional Chinese/Korean/Russian/Italian/Spanish/Portugu ese/Vietnamese |
| Maximum cutting depth | =1.5mm |
| Minimum cutting width | (Laser light = 0.15mm) details 980LASER PRO+ 980LASER PRO S+ Cutting width>material thickness |
| Comparative discourse | The cutting speed is fast, the laser light is very fine, the laser output is very uniform, and the cutting of thick plate film is stable. Long laser life = 10000 hours |
time, and the unwanted internal waste can be directly cut off, saving the time of manual removal (also known as laser waste removal machine). Laser cutting plotter can also remove the surface to achieve engraving effect. Laser cutting is deeper than knife cutting, and the cutting thickness can reach 1.5mm
video
