Place of Origin:
CHINA
Brand Name:
LEDIO
Certification:
CE FDA
Model Number:
980

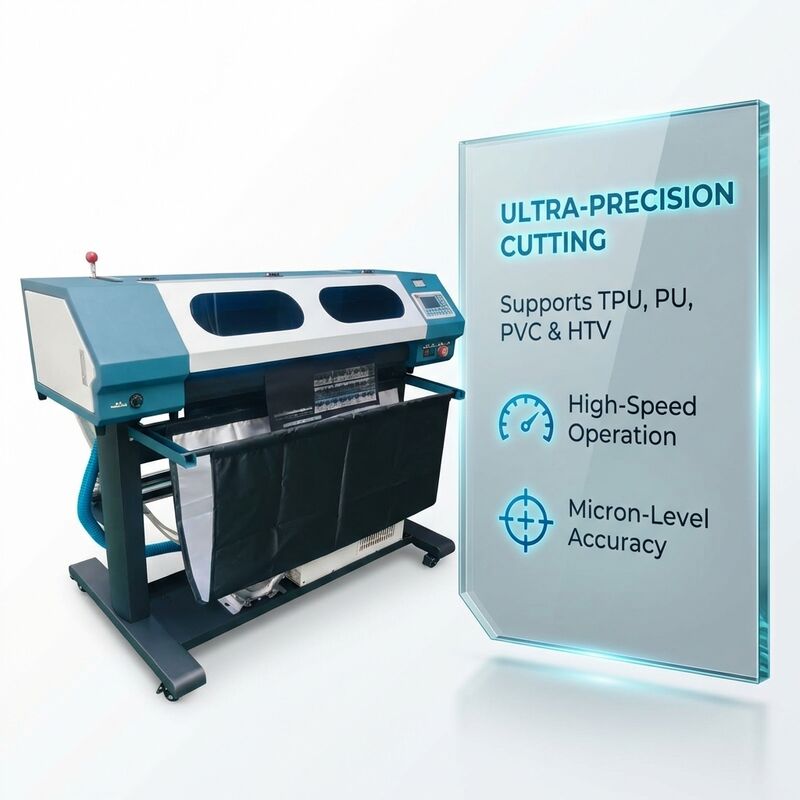

Puff TPU PU Vinyl Laser cutting Plotter Machine Factory China
Applicable industries:
clothing and accessories, personalized patterns and labels for sportswear, children's clothing, shoes and hats, luggage, hot stamping/vinyl film. PVC,TPU,PU, Flock, silicone film, reflective film, luminous film, laser film.
Core advantages:
Laser vinyl cutting plotter have become the preferred equipment for film material processing in multiple industries due to their advantages of high precision, high flexibility, low cost, and multiple adaptability. They are used for fine cutting of hot stamping and vinyl films, as well as convenient pattern and marking and waste disposal. They balance quality and efficiency, helping enterprises reduce costs, increase efficiency, and enhance competitiveness.
Parameter
| Type number | LD-800 | |
| Max. working width | 800mm | |
| Control system | Taizhi control system | |
| Laser tube brand | RF metal tube (Yongli brand) | |
| Laser tube Power | 40-45w | 60-75W |
| Machine Motor | Servo motor(JMK brand) | |
| Cooling Mode | CW5200 water chiller | |
| Exhaust fan power | 550W | |
| Maximum Cutting Thickness | 0.2-1.5MM(some material need to test ) | 2mm (some material need to test ) |
| Language | Chinese/English/Traditional Chinese/Korean/Russian/Italian/Spanish/Portuguese/Vietnamese | |
| Working Voltage | 220V single phase 50-60HZ | |
| Air pump power | 25W | |
| support software | Signmaster/Coreldraw/AI | |
| Support file formats | PDF/SVG/AI/PLT/DXF/DST/DSB/BMP/JPG/PNG/ GIF/ISO/CUT/DAT | |
| Repetitive cutting accuracy | ±0.05mm | |
| ambient temperature | 1-30 °C | |
| Waste collection device | Machine have | |
| Machine feeding rack | Machine have | |
| Vacuum adsorption platform | Machine have | |
| CCD | Machine standard with | |
| Machine oversize | 1480*790*1150mm(L*W*H) | |
| Machine wooden package size | 1600*1000*700mm(L*W*H) | |
| Gross /Net weight | 135/175kgs | |
